After July 2021, the 2.3.x release line no longer received quality updates or user guide updates. PHP 7.3 reached end of support in December 2021, and Adobe Commerce 2.3.x reached end of support in September 2022. We strongly recommend upgrading to Adobe Commerce 2.4.x to help maintain PCI compliance.
Catalog
This site contains archived merchant documentation for a version of Adobe Commerce and Magento Open Source that has reached end-of-support.
The documentation available here is intended for historical reference only and is not maintained.
The Adobe Commerce Merchant Documentation for current releases is published on the Adobe Experience League.
Stores > Settings > Configuration > Catalog > Catalog

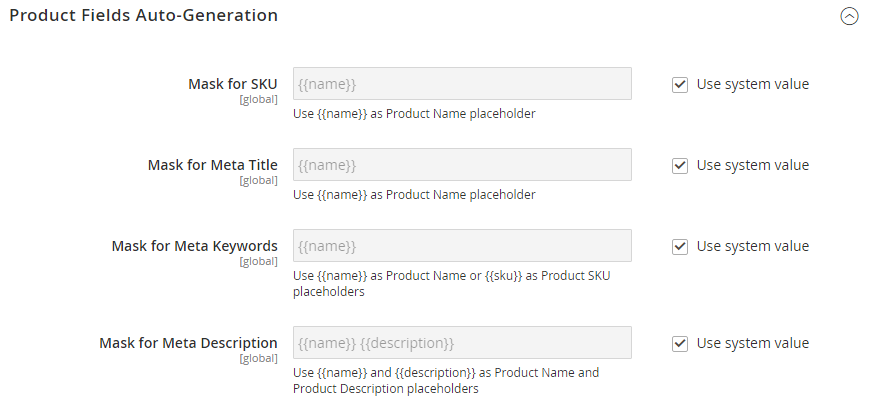

Product Fields Auto-Generation
Product Fields Auto-Generation
| Field | Scope | Description |
|---|---|---|
| Mask for SKU | Global | Determines the default value of the SKU field based on placeholder values from other fields and any additional text that is entered. Default placeholder: Product Name - {{name}} |
| Mask for Meta Title | Global | Determines the default value of the Meta Title field based on placeholder values from other fields and any additional text that is entered. Default placeholder: Product Name - {{name}} |
| Mask for Meta Keywords | Global | Determines the default value of the Meta Keywords field based on placeholder values from other fields and any additional text that is entered. Default placeholder: Product Name - {{name}} |
| Mask for Meta Description | Global | Determines the default value of the Meta Description field based on placeholder values from other fields and any additional text that is entered. Default placeholder: Product Name - {{name}} Description - {{description}} |
Product Reviews
| Field | Scope | Description |
|---|---|---|
| Allow Guests to Write Reviews | Website | Determines if customers must open an account with your store to be able to write product reviews. |
Storefront
| Field | Scope | Description |
|---|---|---|
| List Mode | Store View | Determines the format of the search results list. Options: Grid Only - Formats the list as a grid of rows and columns. Each product appears in a single cell of the grid. List Only - Formats the list with each product on a separate row. Grid (default / List) - By default, products appear in Grid view and can be toggled to List view. List (default / Grid) - By default, products appear in List View and can be toggled to Grid view. |
| Products per Page on Grid Allowed Values | Store View | Determines the number of products displayed in Grid View. To provide a selection of options, enter multiple values separated by commas. |
| Products per Page on Grid Default Value | Store View | Determines the number of products displayed per page by default in Grid View. |
| Products per Page on List Allowed Values | Store View | Determines the number of products displayed in List View. To provide a selection of options, enter multiple values separated by commas. |
| Products per Page on List Default Value | Store View | Determines the number of products displayed per page by default, in List View. |
| Product Listing Sort by | Store View | Determines the sort order of the search results list. The selection of options is determined by the Display Settings of the category and the available attributes that are set to be Used for Sorting in Product Listing. The default is set to Use All Available Attributes and typically includes Best Value, Name, Price |
| Allow All Products per Page | Store View | If set to Yes, includes the ALL option in the “Show per Page” control. |
| Remember Category Pagination | Global | If set to Yes, the current category pagination values are saved as customers browse from one category to another in product listings. Saving the value uses more cache storage and can affect the way pages are indexed by search engines. Options: Yes / No (default) |
| Use Flat Catalog Category | Global | Enables the flat category structure. (not recommended) Options: Yes / No |
| Use Flat Catalog Product | Global | Enables the flat product structure. (not recommended) Options: Yes / No |
| Swatches per Product | Store View | Determines the number of swatches available for each product. Default: 16 |

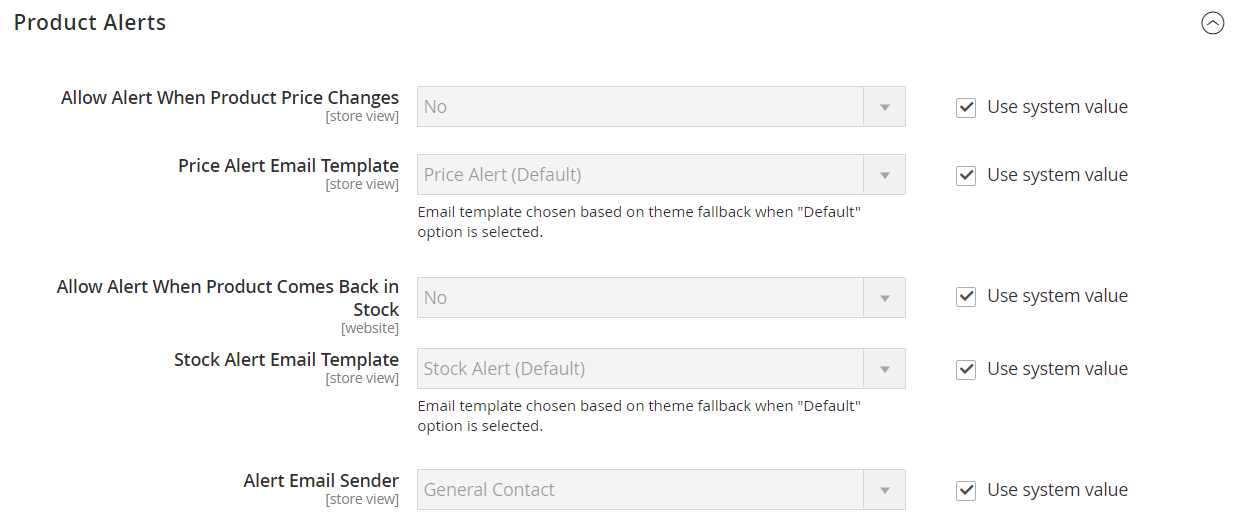

Product Alerts
| Field | Scope | Description |
|---|---|---|
| Allow Alerts When Product Price Changes | Store View | Determines if email alerts are available for product price changes. Options: Yes / No |
| Price Alert Email Template | Store View | Identifies the template that is used for product price change email alerts. Default template: Product price alert |
| Allow Alert When Product Comes Back in Stock | Website | Determines if customers can choose to receive an alert when the product comes back in stock. Options: Yes / No |
| Stock Alert Email Template | Store View | Identifies the template that is used for stock alert email notifications. Default template: Product stock alert |
| Alert Email Sender | Store View | Determines the store contact that appears as the sender of the product alert email message. |

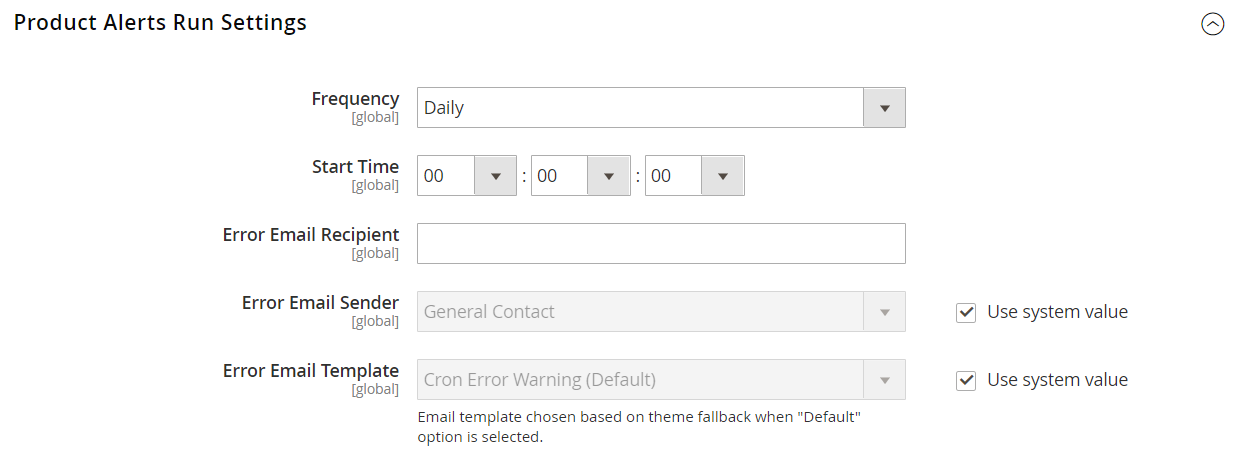

Product Alerts Run Settings
| Field | Scope | Description |
|---|---|---|
| Frequency | Global | Choose how often product alerts are sent out. Options: Daily / Weekly / Monthly |
| Start Time | Global | Choose what time of day the product alert process starts. This time should be after any price or inventory updates are performed. |
| Error Email Recipient | Global | Identify the email address of the person (normally a store administrator) who should receive an email notification when there is an error in the product alert process. |
| Error Email Sender | Global | Select the role that the email will be from. |
| Error Email Template | Global | Select the email template to use for product alert error notifications. |

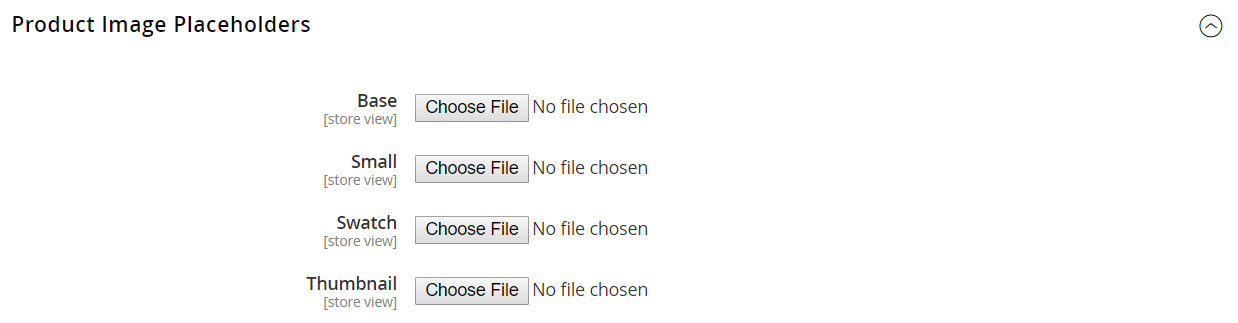

Product Image Placeholders
| Field | Scope | Description |
|---|---|---|
| Base Image | Store View | Identifies the placeholder file chosen for the base image. |
| Small Image | Store View | Identifies the placeholder file chosen for the small image. |
| Thumbnail | Store View | Identifies the placeholder file chosen for the thumbnail. |
| Choose File | Navigates to the file and uploads it as the placeholder image for the type. |
Recently Viewed/Compared Products
Recently Viewed/Compared Products
| Field | Scope | Description |
|---|---|---|
| Show for Current | Website | Limits the products shown to the current website. Options: Website / Store / Store View |
| Default Recently Viewed Products Count | Store View | Determines the maximum number of recently viewed products that appear in the list. |
| Default Recently Compared Products Count | Store View | Determines the maximum number of recently compared products that appear in the list. |
Product Video
| Field | Scope | Description |
|---|---|---|
| YouTube API key | Store View | Specifies the API key that is required to connect to the YouTube server. |
Price
| Field | Scope | Description |
|---|---|---|
| Catalog Price Scope | Global | Determines the scope of the base currency. Options: Global / Website. |
| Default Product Price | Global | Defines the default product price, if applicable. |
Layered Navigation

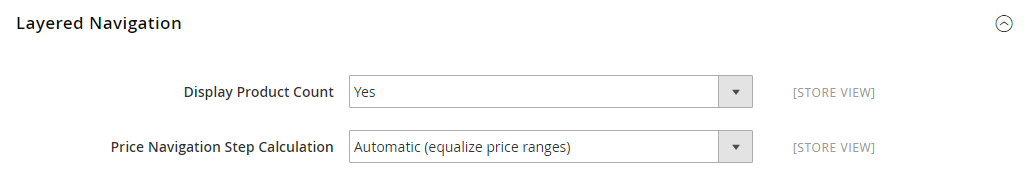

Layered Navigation - Automatic (equalize price ranges)

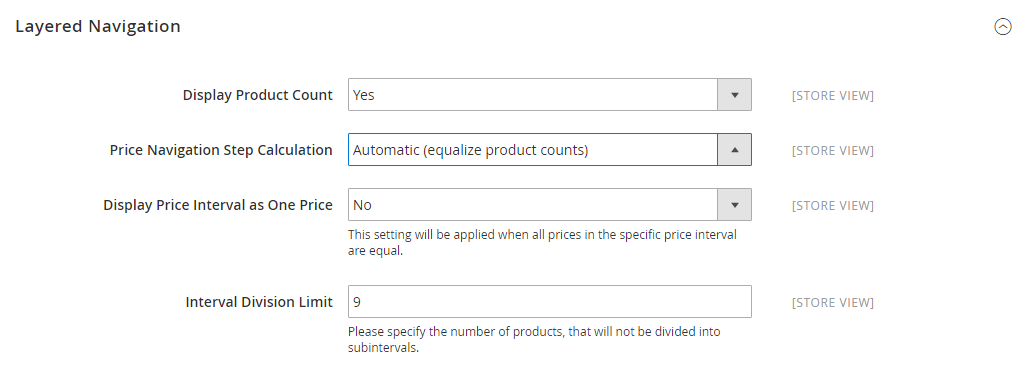

Layered Navigation - Automatic (equalize product counts)
| Field | Scope | Description |
|---|---|---|
| Display Product Count | Store View | Determines if the product count appears after each attribute, price range, and category. Options: Yes / No |
| Price Navigation Step Calculation | Store View | Determines the method used to determine the price navigation step. Options: Automatic (equalize price ranges) - Bases the calculation on the price range of products in the group. Automatic (equalize product counts) - Bases the calculation on the number of products in the group. Establishes a threshold for the minimum number of products in the group, to prevent them from being divided into smaller groups. Manual - Uses the division limit that you enter for price intervals. |
| Default Price Navigation Step | Store View | Determines the number of products that are included in each step. |
| Maximum Number of Price Intervals | Store View | Establishes a limit for the number of price intervals that appear in layered navigation. |
Category Permissions
| Field | Scope | Description |
|---|---|---|
| Enable | Global | Activates category restrictions. By default, using this feature restricts all categories. Options: Yes / No |
| Allow Browsing Category | Website | Determines who is allowed to browse through categories. Options: Yes, for Everyone - Allows all visitors and customers to the browse the category. Yes, for Specified Customer Groups - Allows only members of selected customer groups to browse the category. No, Redirect to Landing Page - Denies access to the category and redirects to the selected page. |
| Display Product Prices | Website | Controls the display of product prices for the category. Options: Yes, for Everyone - Allows everyone to see the price of products in the category. Yes, for Specified Customer Groups - Allows only members of selected customer groups to see the price of products in the category. No - Turns off the display of product prices for the category. |
| Allow Adding to Cart | Website | Determines who can purchase products from the category. Options: Yes, for Everyone - Allows everyone to place products from the category into their shopping carts. Yes, for Specified Customer Groups - Allows only members of selected customer groups to place products from the category into their shopping carts. No - Does not allow anyone to place products from the category into their shopping carts. |
| Disallow Catalog Search by | Website | Identifies the customer groups that are not allowed to search for products in the category. |
Search Engine Optimization
| Field | Scope | Description |
|---|---|---|
| Popular Search Terms | Store View | Determines if Popular Search Terms is implemented in the store. Options: Enable / Disable |
| Product URL Suffix | Store View | Determines if a suffix, such as html or htm, is applied to product URLs. If used, do not include a period before the suffix, because it is applied automatically. |
| Category URL Suffix | Store View | Determines if a suffix, such as html or htm, is applied to category URLs. If used, do not include a period before the suffix, because it is applied automatically. |
| Use Categories Path for Product URLs | Store View | Determines if category paths are included in product URLs. Doing so can cause multiple URLs to point to the same page, which might impact search rank. To learn more, see: Canonical Meta Tag. |
| Create Permanent Redirect for URLs if URL Key Changed | Store View | Determines if a permanent redirect is created automatically whenever a URL key changes. When implemented, the Create Custom Redirect for old URL checkbox below the product URL Key field is selected by default. Options: Yes / No |
| Generate “category/product” URL Rewrites | Global | Determines if Magento generates data and saves it into rewrite tables when a user saves a category that contains many assigned products. Options: Yes / No Important: Saving this generated data into a URL rewrites table can degrade Magento performance. See Automatic Product Redirects for more information. |
| Page Title Separator | Store View | Identifies the character that separates the category name and subcategory in the browser title bar. |
| Use Canonical Link Meta Tag for Categories | Store View | If there are multiple URLs that point to the same category page, this option uses a canonical meta tag to identify the category URL that search engines should index. The URL includes a full name to the category using the metatag. This reduces duplicate content and improves SEO. Options: Yes / No |
| Use Canonical Link Meta Tag for Products | Store View | If there are multiple URLs that point to the same product page, this option uses a canonical meta tag to identify the product URL that search engines should index. The URL includes a full name to the product using the metatag. This reduces duplicate content and improves SEO. Options: Yes / No |
Category Top Navigation
| Field | Scope | Description |
|---|---|---|
| Maximal Depth | Global | Determines the number of subcategory levels in the top navigation. The default value of zero places no limit on the number of levels. |
Catalog Search
Magento offers a choice of search engines, and supports both MySQL and several versions of Elasticsearch.
MySQL
| Field | Scope | Description |
|---|---|---|
| Minimal Query Length | Store View | The minimum number of characters allowed in a catalog search. The value set for this option must be compatible with the corresponding range set in your MySQL search engine configurations. For example, if you set this value to 2 in Magento, update the value in your search engine. |
| Maximum Query Length | Store View | The maximum number of characters allowed in a catalog search.The value set for this option must be compatible with the corresponding range set in your MySQL search engine configurations. For example, if you set this value to 300 in Magento, update the value in your search engine. |
| Number of top search results to cache | Store View | The number of popular search terms and results to cache for faster responses. Entering a value of 0 caches all search terms and results when entered a second time. Default value: 100 |
| Search Engine | Global | Identifies the search engine used to process requests for catalog data. By default, Magento Enterprise uses the MySQL search engine. Selected value: MySQLEAV product indexer is always enabled for MySQL. This feature improves indexation speed and restricts the indexer from use by 3rd-party extensions. |
| Autocomplete Limit | Store View | The maximum number of search results to display for search autocomplete. Restricting this amount increases performance of searches and reduces the displayed list size. Default value: 8 |
| Enable Search Suggestions | Store View | Determines if search suggestions appear for common misspellings. When enabled, search suggestions are offered for any request that returns no results. Search suggestions can impact the performance of search. Options: Yes / No. When set to Yes, additional options display for Enable Search Recommendations and associated fields. |
| Search Suggestions Count | Store View | The maximum number of search suggestions offered. Default value: 2 |
| Show Results Count for Each Suggestion | Store View | Determines if the number of search results is shown for each suggestion. Depending on theme, the number usually appears in brackets after the suggestion. Options: Yes / No |
| Enable Search Recommendations | Store View | Determines if search recommendations are offered when a search returns no results. Options include: Yes / No. When set to Yes, additional options display for Search Recommendations Count and Shows Results Count for Each Recommendation. |
| Search Recommendations Count | Store View | Specifies the number of search terms offered as recommendations. By default, no more than five (5) are shown. |
| Show Results Count for Each Recommendation | Store View | When set to Yes, the number of products found for the proposed search recommendation is shown in the brackets. Options: Yes / No |
Elasticsearch
Magento supports the following versions of Elasticsearch: 6.x, 5.x, and 2.x (deprecated).

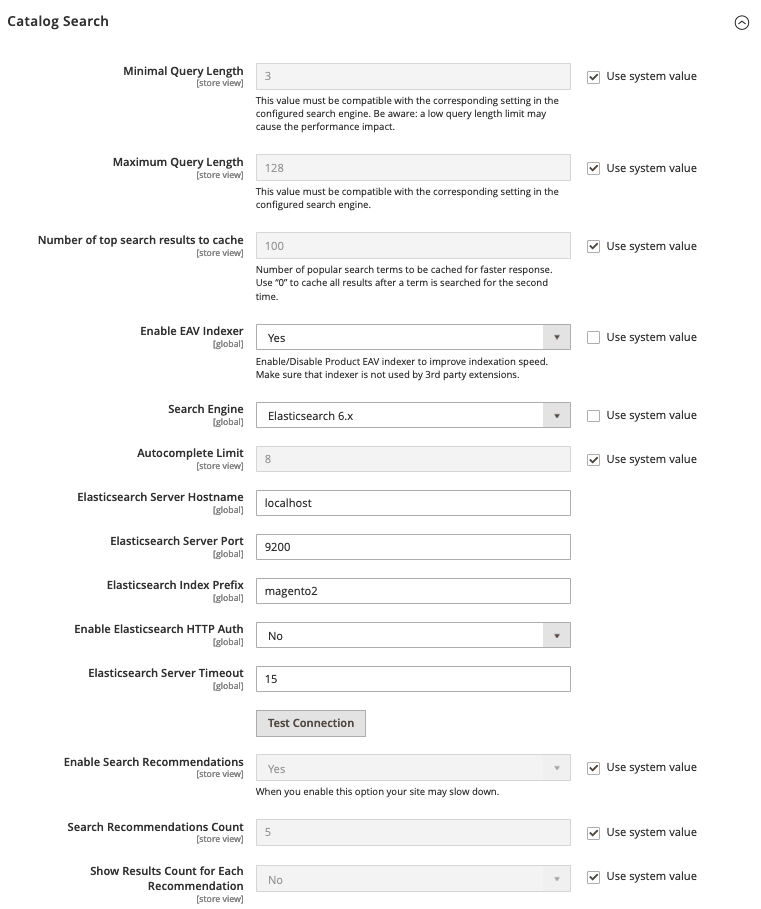

Catalog Search - Elastic Search (including 6.0+)
| Field | Scope | Description |
|---|---|---|
| Minimal Query Length | Store View | The minimum number of characters allowed in a catalog search. The value set for this option must be compatible with the corresponding range set in your Elasticsearch search engine configurations. For example, if you set this value to 2 in Magento, update the value in your search engine. |
| Maximum Query Length | Store View | The maximum number of characters allowed in a catalog search. The value set for this option must be compatible with the corresponding range set in your Elasticsearch search engine configurations. For example, if you set this value to 300 in Magento, update the value in your search engine. |
| Number of top search results to cache | Store View | The number of popular search terms and results to cache for faster responses. Entering a value of 0 caches all search terms and results when entered a second time. Default value: 100 |
| Enable EAV Indexer | Global | Determines if you want to enable or disable the Product EAV indexer. This feature improves indexation speed and restricts the indexer from use by 3rd party extensions. This option only displays for Elasticsearch or Elasticsearch 5.x Search Engines. Default Option: Yes for enabled |
| Search Engine | Global | Identifies the search engine used to process requests for catalog data. Options: Elasticsearch - (Deprecated) Elasticsearch 2.x has reached end of life. To learn more, see Elastic Product End of Life Dates. Elasticsearch 5.x - (Default) Elasticsearch 5.x is scheduled for end of life. To learn more, see Elastic Product End of Life Dates. Elasticsearch 6.x - (Recommended) For the best performance, we recommend that you use the latest version of Elasticsearch 6.x Note: To learn more about using Elasticsearch versions 2.x and 5.x, see Change the Elasticsearch Client. |
| Autocomplete Limit | Store View | The maximum number of search results to display for search autocomplete. Restricting this amount increases performance of searches and reduces the displayed list size. Default value: 8 |
| Elasticsearch Server Hostname | Global | Specifies the name of the Elasticsearch server. Default value: localhost |
| Elasticsearch Server Port | Global | Specifies the number of the server port used by Elasticsearch. |
| Elasticsearch Index Prefix | Global | Assigns a prefix to identify the Elasticsearch index. Example: Magento2 |
| Enable Elasticsearch HTTP Auth | Global | If enabled, uses HTTP authentication to prompt for a username and password before accessing Elasticsearch Server. Options: Yes / No |
| Elasticsearch Server Timeout | Global | Determines the number of seconds before the server times out. Default value: 15 |
| Test Connection | Validates the Elasticsearch connection. | |
| Enable Search Suggestions | Store View | Determines if search suggestions appear for common misspellings. When enabled, search suggestions are offered for any request that returns no results. Search suggestions can impact the performance of search. Options: Yes / No. When set to Yes, additional options display for Enable Search Recommendations and associated fields. |
| Search Suggestions Count | Store View | Determines the number of search suggestions that are offered. For example: 2 |
| Show Results Count for Each Suggestion | Store View | Determines if the number of search results is shown for each suggestion. Depending on theme, the number usually appears in brackets after the suggestion. Options: Yes / No |
| Enable Search Recommendations | Store View | Determines if search recommendations are enabled for the store view. Options: Yes / No When set to Yes, additional options display for Search Recommendations Count and Shows Results Count for Each Recommendation. |
| Search Recommendations Count | Store View | Specifies the number of search terms offered as recommendations. By default, no more than five (5) are shown. |
| Show Results Count for Each Recommendation | Store View | When set to Yes, the number of products found for the proposed search recommendation is shown in the brackets. Options: Yes / No |
Downloadable Product Options
| Field | Scope | Description |
|---|---|---|
| Order Item Status to Enable Downloads | Website | Determines the status that an order must have before downloads become available. Options: Pending / Invoiced |
| Default Maximum Number of Downloads | Website | Determines the default number of downloads available to a customer. |
| Shareable | Website | Determines if customers must log in to their accounts to access the download link. Options: Yes - Allows the link to be sent by email, which can then be shared with others. No - Requires customers to log in to their accounts to access the download link. |
| Default Sample Title | Store View | The default title for all sample files. |
| Default Link Title | Store View | The default link for all downloadable titles. |
| Opens Links in New Window | Website | Determines if the download link opens in a new browser window. Options: Yes / No |
| Use Content Disposition | Store View | Determines how the link to the downloadable content is delivered, as an email attachment or as an inline link in a browser window. Options: Attachment - The download link is delivered as an email attachment. Inline - The download link is delivered as an inline link on a web page. |
| Disable Guest Checkout if Cart Contains Downloadable Items | Website | Determines if guests who are purchase downloadable products must register for an account and log in to complete the checkout process. Options: Yes - If the cart contains downloadable products, the guest will have to either register for an account, or login to an existing account to complete the purchase. No - The download link is delivered as an inline link in the body of the email message. Note: Guest checkout is only available for download products if Sharable is set to Yes. |
Date & Time Custom Options
| Field | Scope | Description |
|---|---|---|
| Use JavaScript Calendar | Store View | Determines if the JavaScript calendar is used as an input control for date fields. Options: Yes / No If set to No, a separate dropdown appears for each part of the date field. |
| Date Fields Order | Store View | Establishes the order of the three date fields. Options: Day / Month / Year |
| Time Format | Store View | Sets the time format to either a twelve or twenty-four hour clock. Options: 12h AM/PM / 24h |
| Year Range | Store View | Defines the beginning and ending range of years that appear in the drop-down Year field. The value must be entered in YYYY format. |
Catalog Events
| Field | Scope | Description |
|---|---|---|
| Enable Catalog Events Functionality | Website | Determines whether the Events module is enabled. |
| Enable Catalog Event Widget on Frontend | Store View | Determines if the Event Widget is available in the storefront. This is a static block with information about events in your site. |
| Number of Events to be Displayed in the Event Slider Widget | Store View | Determines the number of events that appear in the Event Slider widget on the category pages. To override, use the limit="x" variable. |
| Events to Scroll per Click in Event Slider Widget | Store View | Determines the number of events that appear in the Event Slider widget on CMS pages, such as the home page. To override, use the scroll="x" variable. |
Rule-Based Product Relations
| Field | Scope | Description |
|---|---|---|
| Maximum Number of Products in Related Products List | Global | Determines the maximum number of products that can appear in the Related Products list. |
| Show Related Products | Global | Determines which list of related products appears in the store. It can be either the list that is selected manually in the Product Information, the list that is generated in response to a product relationship rule, or a combination of the two. Options: Both Selected and Rule-Based / Selected Only / Rule-Based Only |
| Rotation Mode for Products in Related Products List | Global | Determines the order in which products in the Related Products list appear. Options: Do not rotate / Shuffle |
| Maximum Number of Products in Cross-Sell Product List | Global | Determines the maximum number of products that can appear in the Cross-Sell list. |
| Show Cross-Sell Products | Global | Determines which list of cross-sell products appears in the store. It can be either the list that is selected manually in the Product Information, the list that is generated in response to a product relationship rule, or a combination of the two. Options: Both Selected and Rule-Based / Selected Only / Rule-Based Only |
| Rotation Mode for Products in Cross-Sell Products List | Global | Determines the order in which products in the Cross-Sell Products list appear. Options: Do not rotate / Shuffle |
| Maximum Number of Products in Upsell Product List | Global | Determines the maximum number of products that can appear in the Upsell Products list. |
| Show Upsell Products | Global | Determines which list of up-sell products appears in the store. It can be either the list that is selected manually in the Product Information, the list that is generated in response to a product relationship rule, or a combination of the two. Options: Both Selected and Rule-Based / Selected Only / Rule-Based Only |
| Rotation Mode for Products in Upsell Product List | Global | Determines the order in which products in the Upsell Product list appear. Options: Do not rotate / Shuffle |
