CompanyHierarchy Container

Part of the storefront-company-management drop-in. Displays and manages the company organizational hierarchy for company administrators, with an interactive tree view that supports drag-and-drop reorganization of parent-child company relationships. The hierarchy supports only a single-level structure: parent companies and their direct children. Nested hierarchies are not supported.

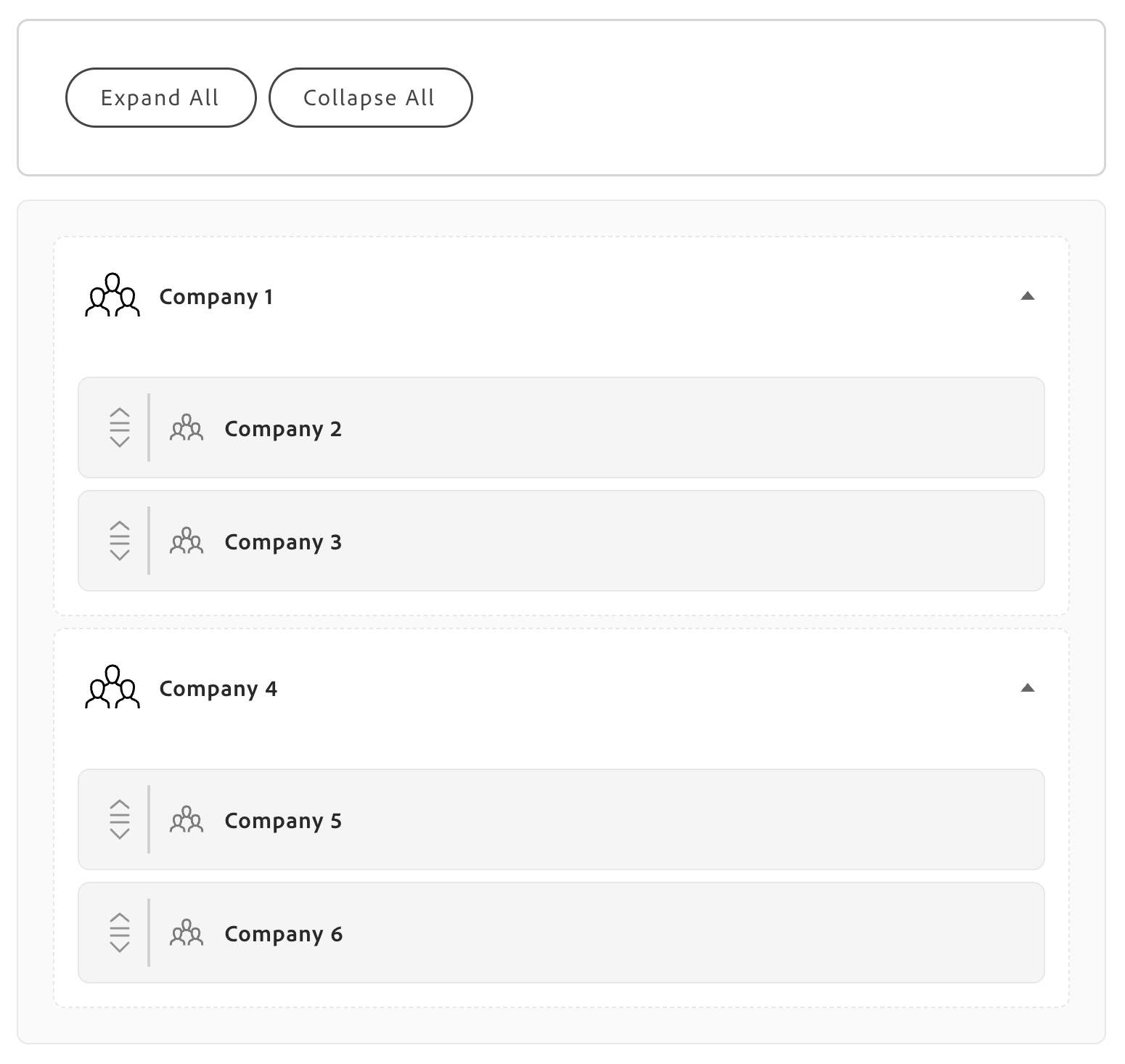

The following shows the tree view rendered in SHOW_STRUCTURE mode.

CompanyHierarchy container showing an interactive tree view of parent and child companies

Caution

Only users with the Company Administrator role can view and interact with this container. Users without that role see an access-denied message. Company features must also be enabled in the Admin before hierarchy data can load — see Admin configuration.

View modes

The container renders one of five view modes depending on data state and user permissions.

Mode	When it appears
IS_LOADING	During the initial admin check and data fetch
NO_ACCESS	When the authenticated user lacks Company Administrator privileges
IS_EMPTY	When no companies exist in the hierarchy
IS_ERROR	When an API call fails or a network error occurs
SHOW_STRUCTURE	When data loads successfully, rendering the full interactive tree

Displayed information

When the container renders in SHOW_STRUCTURE mode, the tree view includes:

• Company names in a hierarchical tree structure
• Visual distinction between root companies (no parent) and child companies nested under a parent
• Optional “Admin” badges next to companies where is_admin is true (controlled by showAdminBadge)
• Drag handles on child companies for reorganizing the structure
• Expand and collapse indicators for companies that have children
• Company icons that distinguish root-level entries (full opacity) from child-level entries
• Selection highlighting with a blue border on the clicked company row
• A toolbar with Expand All and Collapse All action buttons

Available actions

Action	How to trigger
Expand or collapse a single node	Click the chevron icon on a company row
Expand all nodes	Click the Expand All toolbar button
Collapse all nodes	Click the Collapse All toolbar button (all nodes collapse except the virtual root)
Select a company	Click any company row
Drag a company	Drag a child company row to a new position in the tree
Drop a company	Drop a dragged company onto a root-level company or the virtual root to reassign the relationship
Auto-refresh	Triggered automatically after a successful assign or unassign operation

GraphQL operations

The container orchestrates the following operations automatically.

Operation	Type	Description
isCompanyAdmin	Query	Validates that the authenticated user has Company Administrator role. The check passes when role.id === '0' or role.name === 'Company Administrator'.
getCompanyHierarchy	Query	Fetches the complete hierarchy including parent-child relationships via the customer.company_hierarchy field.
assignChildCompany	Mutation	Assigns a child company to a parent company.
unassignChildCompany	Mutation	Removes a child company from its parent, making it a root-level company.

Configuration

The CompanyHierarchy container provides the following configuration options:

Parameter	Type	Req?	Description
withHeader	boolean	No	Renders a “Company Hierarchy” title and divider above the tree. Set to true for standalone page sections; leave false (default) when the surrounding layout already provides a title. Use true for full-page company management dashboards; use false for sidebar widgets or embedded views.
className	string	No	Adds a custom CSS class to the root container element, merged with the default account-company-hierarchy class. Use to apply brand styles, integrate with a utility CSS framework (Tailwind, Bootstrap, etc.), add responsive layout classes for mobile or tablet layouts, or override default spacing, colors, or typography.
defaultExpanded	boolean	No	Controls whether all tree nodes are expanded on first render. Defaults to true. Use true for small hierarchies (fewer than 10 companies) where immediate full visibility helps; use false for large hierarchies (20 or more companies) to reduce visual overload, or for progressive disclosure in compact or mobile layouts.
showAdminBadge	boolean	No	Shows an “Admin” badge next to companies where the authenticated user has admin privileges (is_admin: true). Defaults to false. Enable in multi-company environments where users manage more than one organization, or in company selection interfaces where quick visual identification of administrative access rights is important. Disable for single-company users or when permissions are irrelevant to the task.
slots	object	No	Replaces or extends the default toolbar above the tree. Use to swap in custom-styled Expand All / Collapse All controls, add extra actions (such as Export to PDF, Print Structure, or Share Hierarchy), implement filtering or search above the tree, display company count badges or hierarchy statistics, or integrate analytics tracking for expand and collapse events. See Slots for context properties.

Slots

The CompanyHierarchy container exposes one slot for customizing the toolbar.

Slot	Type	Required	Description
Actions	SlotProps<HierarchyActionsContext>	No	Replaces the default “Expand All” / “Collapse All” toolbar buttons. Receives context with tree controls and state.

Actions slot context

The Actions slot receives a context object with the following properties:

Property	Type	Description
expandAll	() => void	Expands all tree nodes.
collapseAll	() => void	Collapses all nodes except the virtual root.
expandedIds	Set<string>	The set of currently expanded node IDs.
setExpandedIds	(ids: Set<string>) => void	Sets the expanded nodes programmatically.
treeItemsCount	number	Total number of companies in the hierarchy.

Usage

The following examples show common ways to render the CompanyHierarchy container.

Basic

import { render as provider } from '@dropins/storefront-company-management/render.js';
import { CompanyHierarchy } from '@dropins/storefront-company-management/containers/CompanyHierarchy.js';

await provider.render(CompanyHierarchy, {})(block);

With header

import { render as provider } from '@dropins/storefront-company-management/render.js';
import { CompanyHierarchy } from '@dropins/storefront-company-management/containers/CompanyHierarchy.js';

await provider.render(CompanyHierarchy, {
  withHeader: true,
})(block);

With header and admin badges

import { render as provider } from '@dropins/storefront-company-management/render.js';
import { CompanyHierarchy } from '@dropins/storefront-company-management/containers/CompanyHierarchy.js';

await provider.render(CompanyHierarchy, {
  withHeader: true,
  defaultExpanded: false,
  showAdminBadge: true,
})(block);

With a custom Actions slot

import { render as provider } from '@dropins/storefront-company-management/render.js';
import { CompanyHierarchy } from '@dropins/storefront-company-management/containers/CompanyHierarchy.js';
import { Button } from '@adobe-commerce/elsie/components';

await provider.render(CompanyHierarchy, {
  className: 'custom-hierarchy-styling',
  withHeader: true,
  defaultExpanded: true,
  showAdminBadge: true,
  slots: {
    Actions: ({ expandAll, collapseAll, treeItemsCount }) => (
      <div className="custom-actions">
        <Button onClick={expandAll}>Open All ({treeItemsCount})</Button>
        <Button onClick={collapseAll}>Close All</Button>
        <Button>Export Structure</Button>
      </div>
    ),
  },
})(block);

Admin configuration

The CompanyHierarchy container has no dedicated Admin panel settings of its own, but the following configurations must be in place for it to function.

Store settings

Path: Admin > Stores > Settings > Configuration > General > B2B Features > Company

Setting	Required value
Enable Company	Yes
Enable Company Registration from the Storefront	Yes

Company settings

Path: Admin > Customers > Companies > Edit Company > Advanced Settings

• The parent company must exist and have Active status.
• Each child company must have a valid company record before it can be assigned to a parent.

Permissions

There are no dedicated ACL resources that control access to Company Hierarchy. Access is determined entirely by the Company Administrator role check performed via the isCompanyAdmin() API. Non-admin users see the access-denied view regardless of Admin panel settings.
