ColorPicker component
The ColorPicker component uses the Spectrum and tinycolor.js libraries to make it easier to choose and implement color values. The ColorPicker component must be a child of the Listing or Form components.
Options
| Option | Description | Type | Default Value |
|---|---|---|---|
colorFormat | Defines the color format displayed in the selection tool and input field. Valid formats: hex, rgb, hsl, hsv, name, none | string | - |
colorPickerMode | Defines the mode that affects the available color picker functionality. Valid modes: simple, full, noalpha, palette | string | - |
elementTmpl | The path to the .html template of the particular field type (color-picker). | string | ui/form/element/color-picker |
label | Option's label. | string | - |
Sources files
- app/code/Magento/Ui/view/base/ui_component/etc/definition/colorPicker.xsd
- app/code/Magento/Ui/view/base/web/js/form/element/color-picker.js
- app/code/Magento/Ui/view/base/web/js/lib/knockout/bindings/color-picker.js
- app/code/Magento/Ui/view/base/web/templates/form/element/color-picker.html
- lib/web/jquery/spectrum/spectrum.js
- lib/web/jquery/spectrum/tinycolor.js
Examples
Copied to your clipboard<form>...<colorPicker name="colors_filter" class="Magento\Ui\Component\Form\Element\ColorPicker" component="Magento_Ui/js/form/element/color-picker"><settings><label translate="true">Color</label><elementTmpl>ui/form/element/color-picker</elementTmpl><colorFormat>rgb</colorFormat><colorPickerMode>full</colorPickerMode><dataScope>colors_filter</dataScope></settings></colorPicker>...</form>

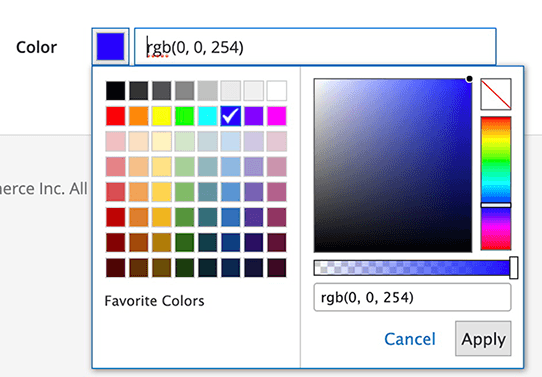

Result
